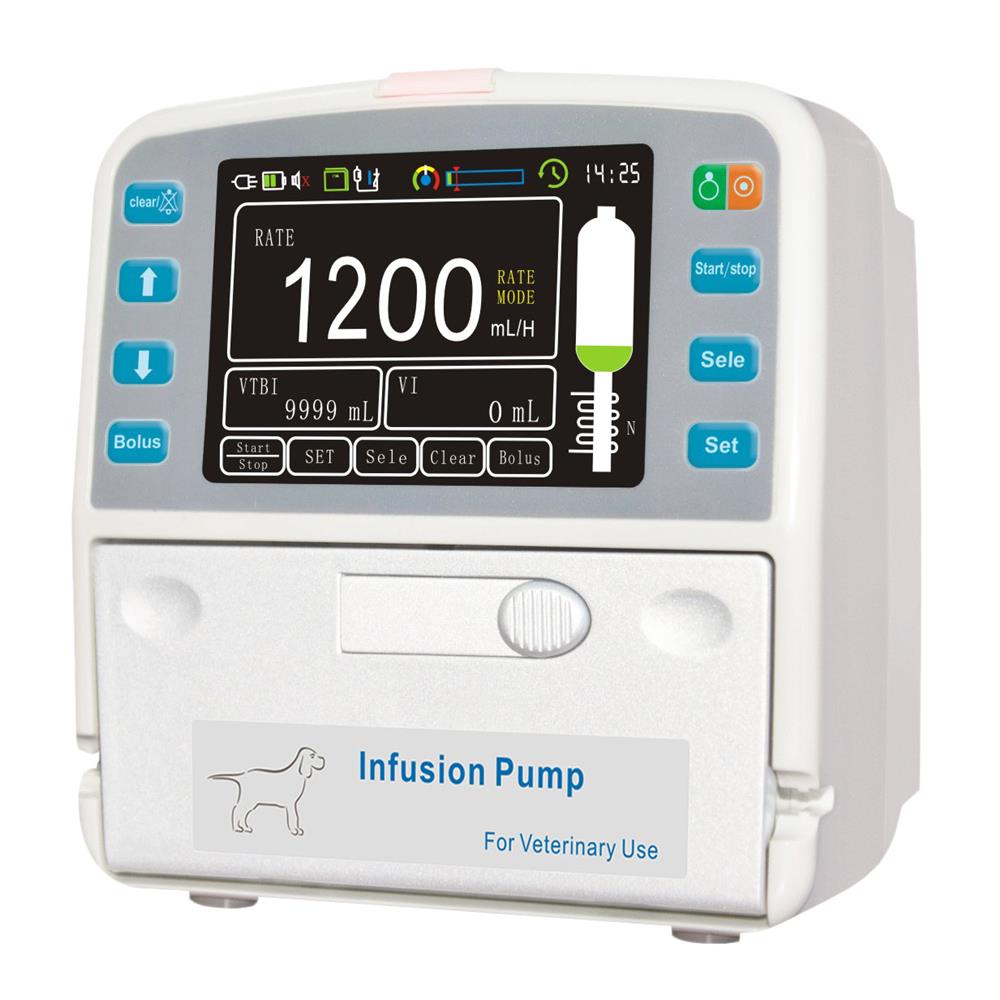

Portable Smart Veterinary Real Time Rechargeable High Quality Digital Infusion Pump Device

Bright color and large LCD Touch Screen

Small size, easy to carry and economical to transport

Compatible with infusion tubes any standard

Three infusion modes for your selection

KVO & Bolus function

Intelligent pressure detection & occlusion detection(adjustable on 3 levels)

Audiovisual alarms,shockproof and waterproof

Autosave previous infusion record

Heating function

Real time display

Technical Parameters:

• Infusion mode: Rate mode, Drip mode, Trace mode

• Infusion set: Any brand of infusion set

• Infusion accuracy: ±5%

• Infusion rate range: Normal mode:1~1200ml/h, increment 1 ml/h;Trace mode:1-99.9ml/h, increment 0.1ml/h

• KVO rate: 1-8ml/h

• Purge/Bolus rate: 300-1200ml/h

• Volume To Be Infused (VTBI): 1-9999 ml

• Air Bubble detection: Ultrasound sensor detection of air bubble

• Occlusion detection: Occlusion pressure detection adjustable on 3 levels

• Alarm: Over, Low battery, Air, OccL, AC power failure, Door open, Time waited out, Error, Countdown

• Displayed information: AC power connection. Power, Volume. Door open. Tube. Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Real time, Infusion rate, VTBI, Volume infused

• Power supply: AC 100-220V, 50-60HZ

• Battery: Rechargeable lithium battery, 7.4 V, 2400mAh;Can work continuously for 3. 5 hours at the rate of 25ml/h

• Dimensions: 135x90x135 mm (L«WxH)

• Weight: <=l.5Kg

• Classification: Class II, BF type

• Waterproof level: IPX3


Main features

Bright color and large LCD Touch Screen


Small size, easy to carry and economical to transport

Compatible with infusion tubes any standard


Three infusion modes for your selection


KVO & Bolus function


Intelligent pressure detection & occlusion detection(adjustable on 3 levels)


Audiovisual alarms,shockproof and waterproof


Autosave previous infusion record


Heating function


Real time display


Technical Parameters

Infusion mode

Rate mode, Drip mode, Trace mode

Infusion set

Any brand of infusion set

Infusion accuracy

±5%

Infusion rate range

Normal mode:1~1200ml/h, increment 1 ml/h;

Trace mode:1-99.9ml/h, increment 0.1ml/h

KVO rate

1-8ml/h

Purge/Bolus rate

300-1200ml/h

Volume To Be Infused (VTBI)

1-9999 ml

Air Bubble detection

Ultrasound sensor detection of air bubble

Occlusion detection

Occlusion pressure detection adjustable on 3 levels

Alarm

Over, Low battery, Air, OccL, AC power failure, Door open, Time waited out, Error, Countdown

Displayed information

AC power connection. Power, Volume. Door open. Tube. Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Real time, Infusion rate, VTBI, Volume infused

Power supply

AC 100-220V, 50-60HZ

Battery

Rechargeable lithium battery, 7.4 V, 2400mAh;

Can work continuously for 3. 5 hours at the rate of 25ml/h

Dimensions

135x90x135 mm (L«WxH)

Weight

<=l.5Kg

Classification

Class II, BF type

Waterproof level

IPX3
