Description

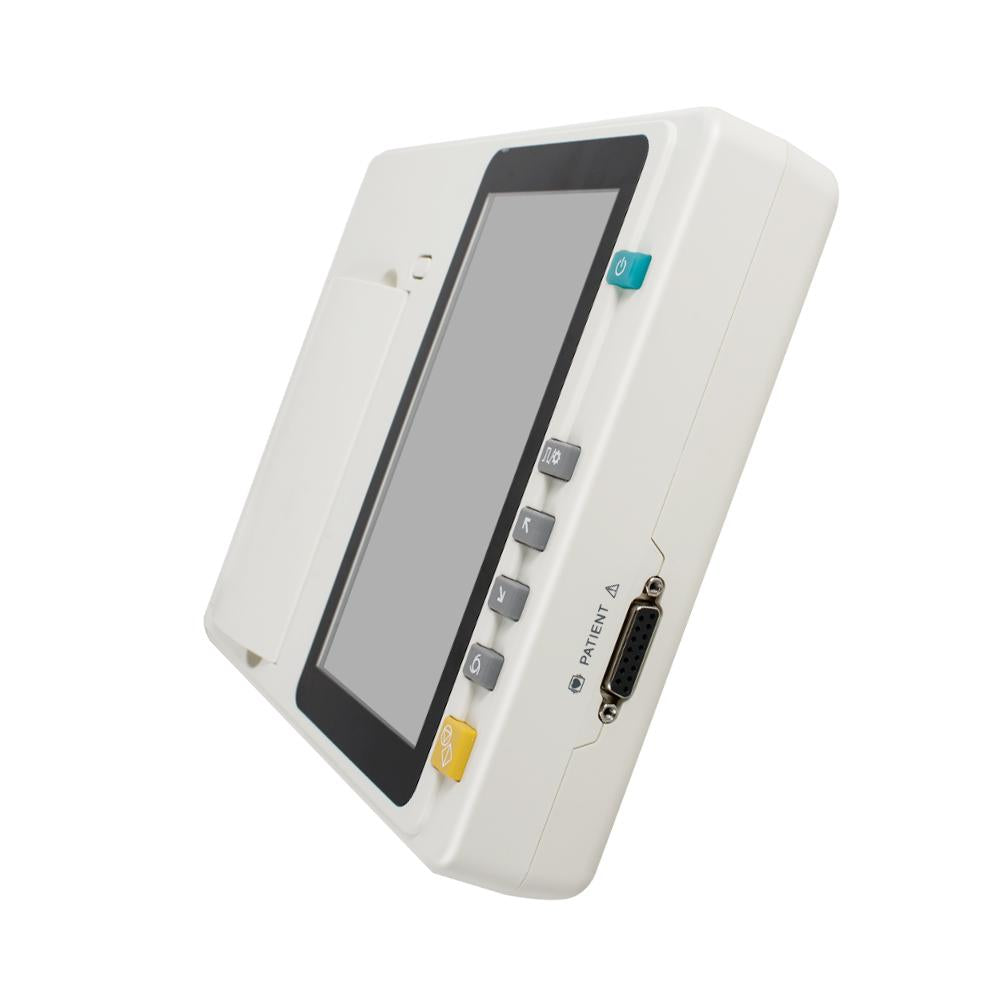

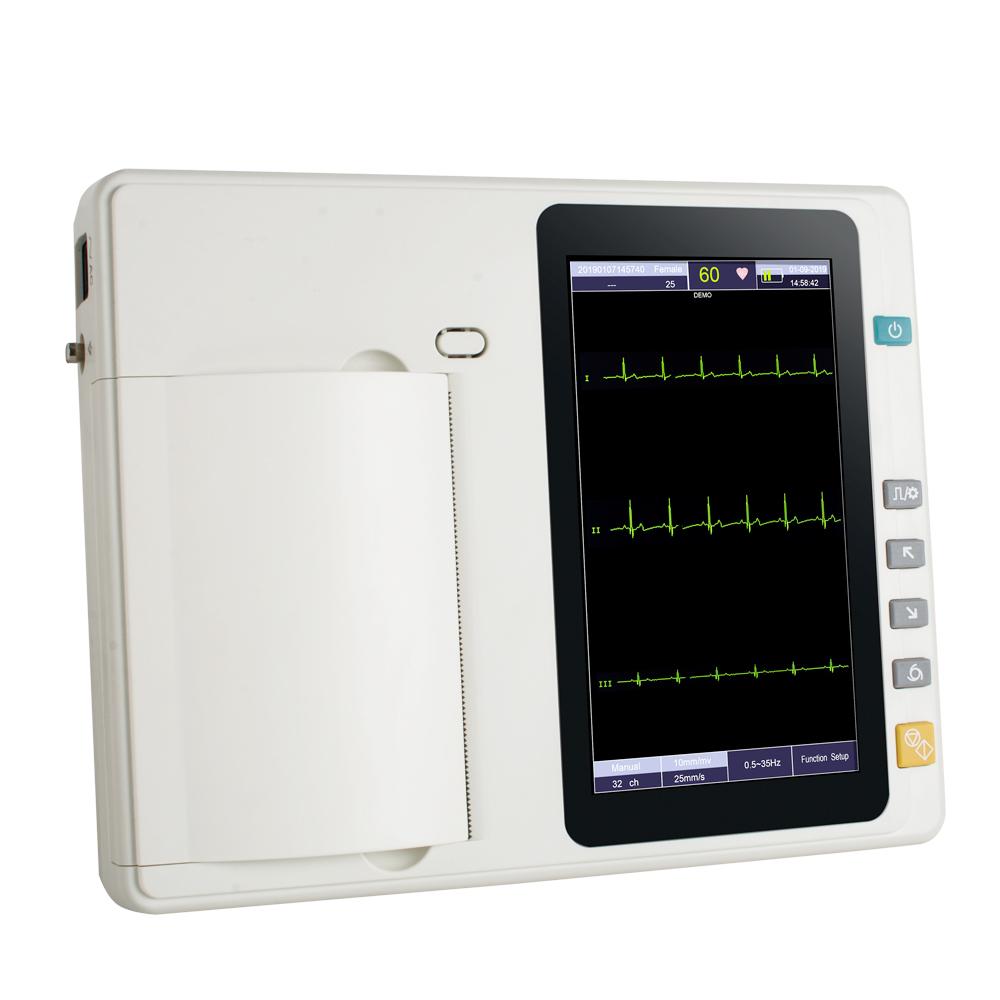

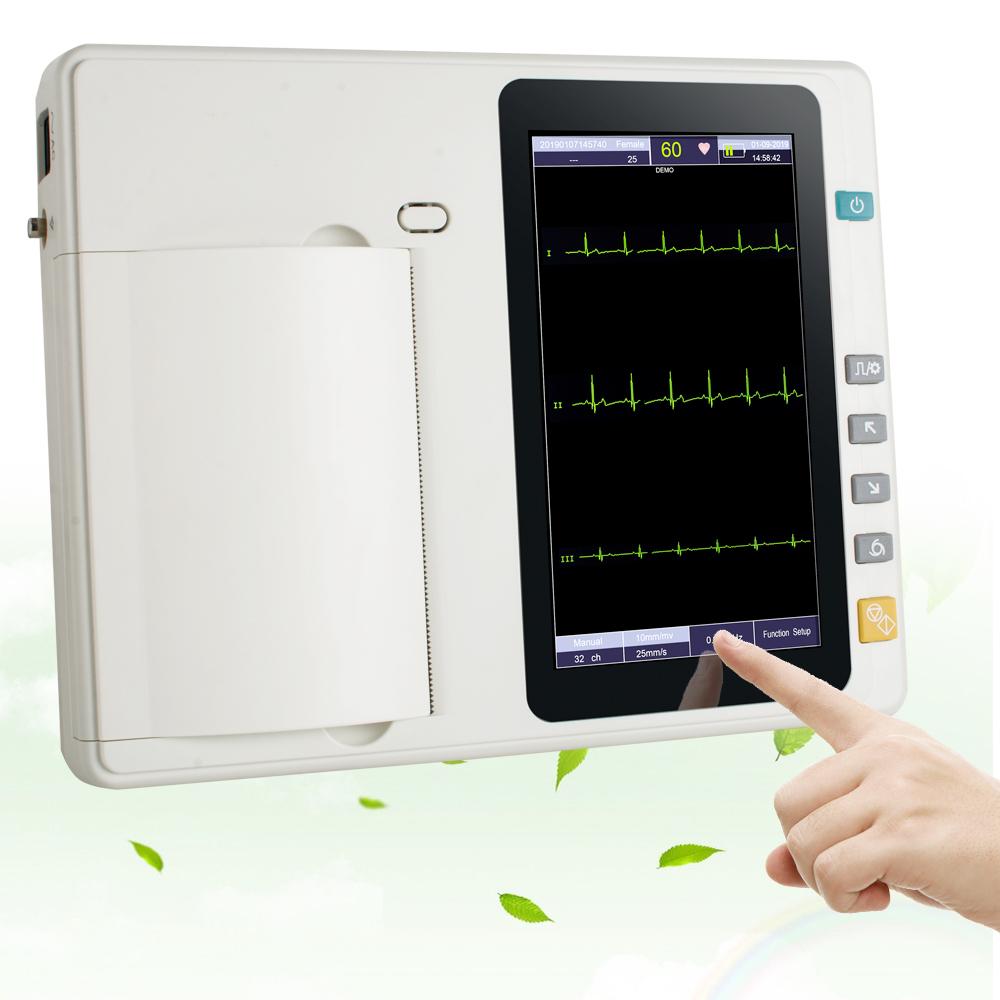

x- 7 inch graphic LCD display,touch screen and function key control at the same time, more convenient and shortcut.
- Three channel ECG machine with interpretation
- Auto-regulation of baseline drift can effectively inhibit baseline drift, optimizing the printing position to achieve high-quality ECG
- With automatically measuring and analyzing function for ECG parameters to reduces the doctor’s burden and improves work efficiency.
- With a high resolution thermal printer to print out ECG trace,describing the trace clear and accurate,annotation as well as related parameters for diagnostic reference.
- 12-lead ECG simultaneous acquisition.
- Adapt 110-240V, 50/60Hz AC power supply.
Specifications:
|
Lead |
standard 12 leads |
|
lead acquisition |
synchronously 12 leads |
|
Input circuit |
Floating; Protection circuit against Defibrillator effect |
|
Input Impedance |
≥50MΩ |
|
Input circuit current |
≤0.0.05μA |
|
Record mode |
Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
|
Filter |
EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
|
CMRR |
>100dB |
|
Patient current leakage |
＜10μA |
|
Input Circuit Current |
＜0.05µA |
|
Frequency Response |
0.05Hz~150Hz (-3dB) |
|
Sensitivity |
2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
|
Anti-baseline Drift |
Automatic |
|
Time constant |
≥3.2s |
|
Noise level |
＜15μVp-p |
|
Paper speed |
12.5 mm/s, 25 mm/s, 50 mm/s |
|
Recording mode |
Thermal printing system |
|
Paper specification |
80mmx20m paper roll |
|
LCD display |
7” graphic LCD |
|
Safety classification |
IEC60601-1 class I, type CF |
|
Power supply |
AC: 100~240V, 50/60Hz, 30VA~100VA |
|
|
DC: 14.8V/2200mAh, built-in lithium battery |
|
Fuse |
AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag |
|
|
AC110V±10% 2*Φ5×20mm,T4A/250V AC time lag |

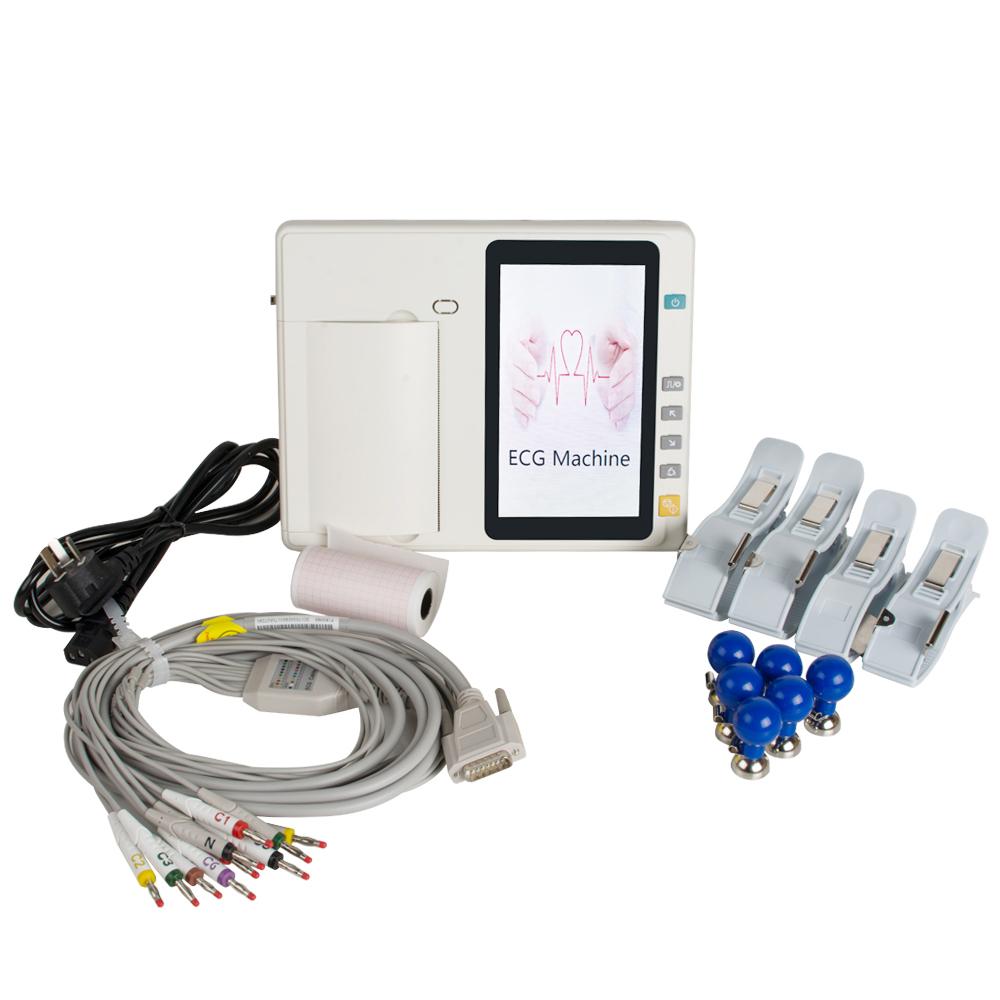

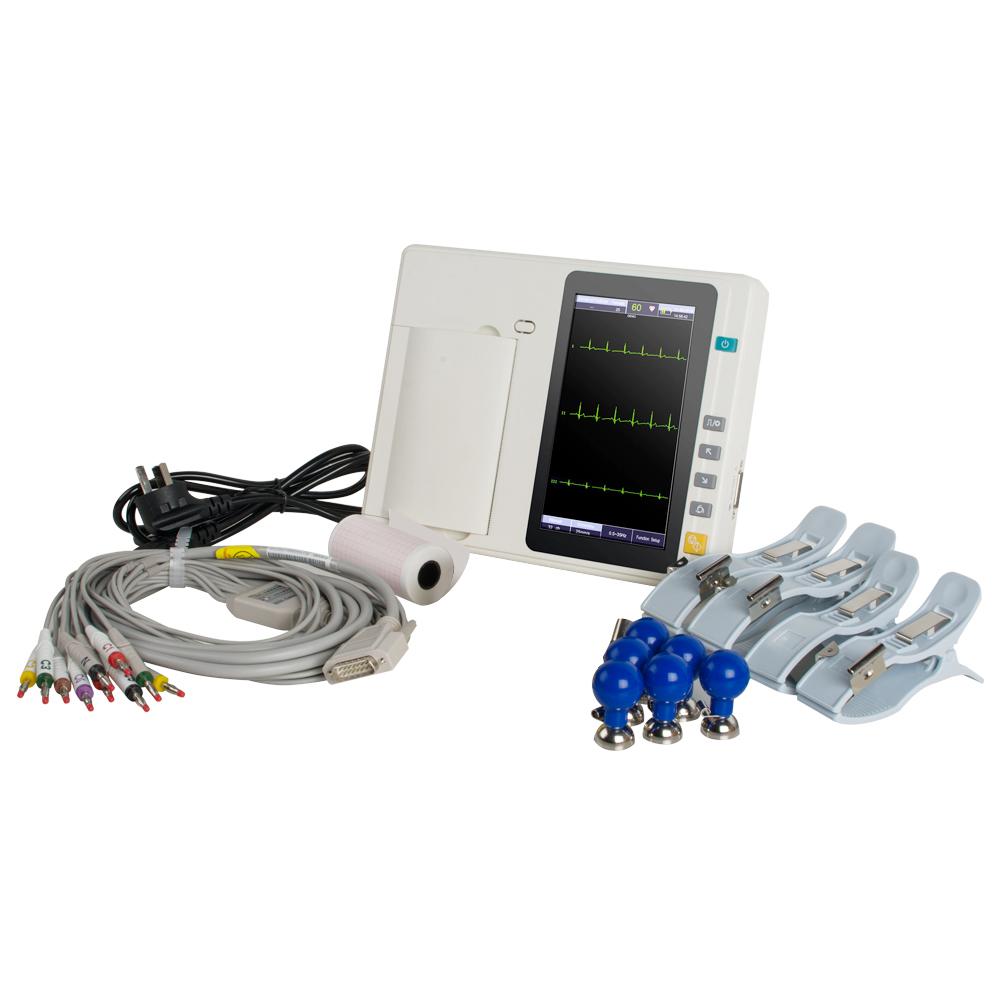

Package List:
ECG Machine×1
ECG Lead Wire×1

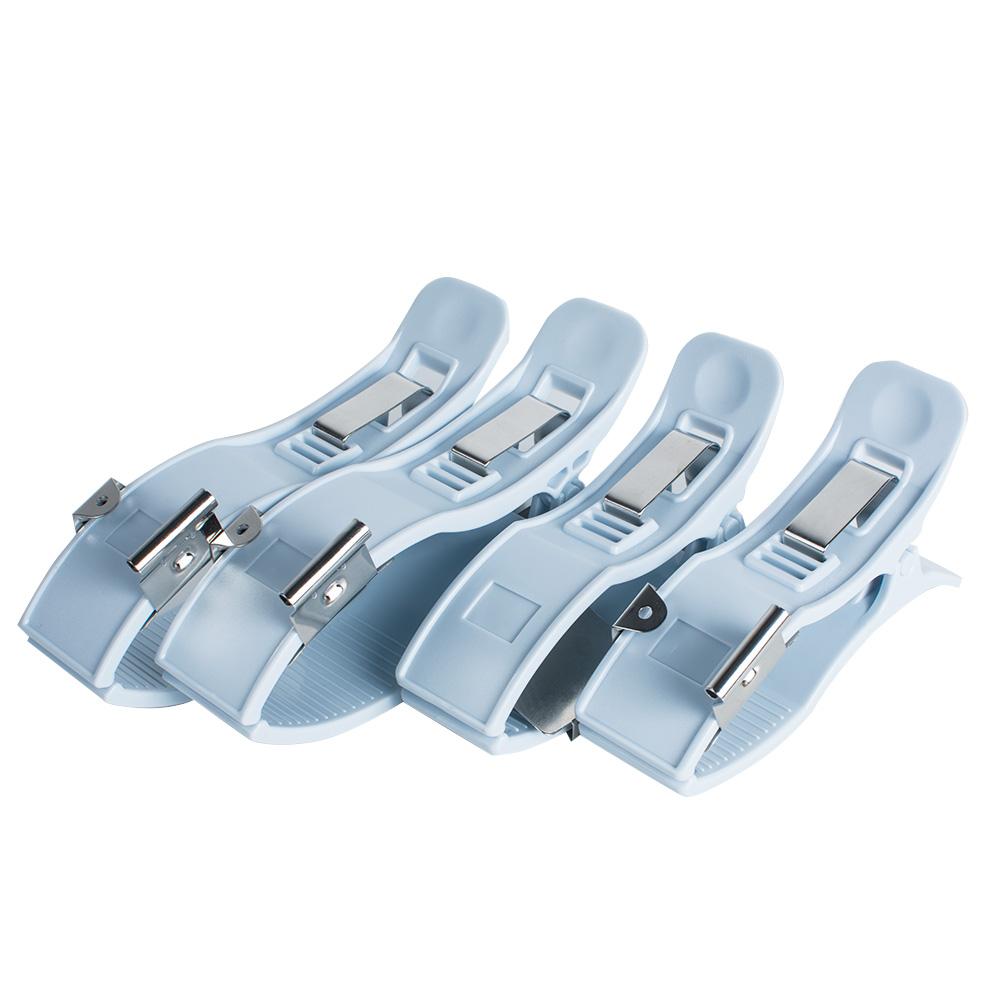

Limp Clip×4

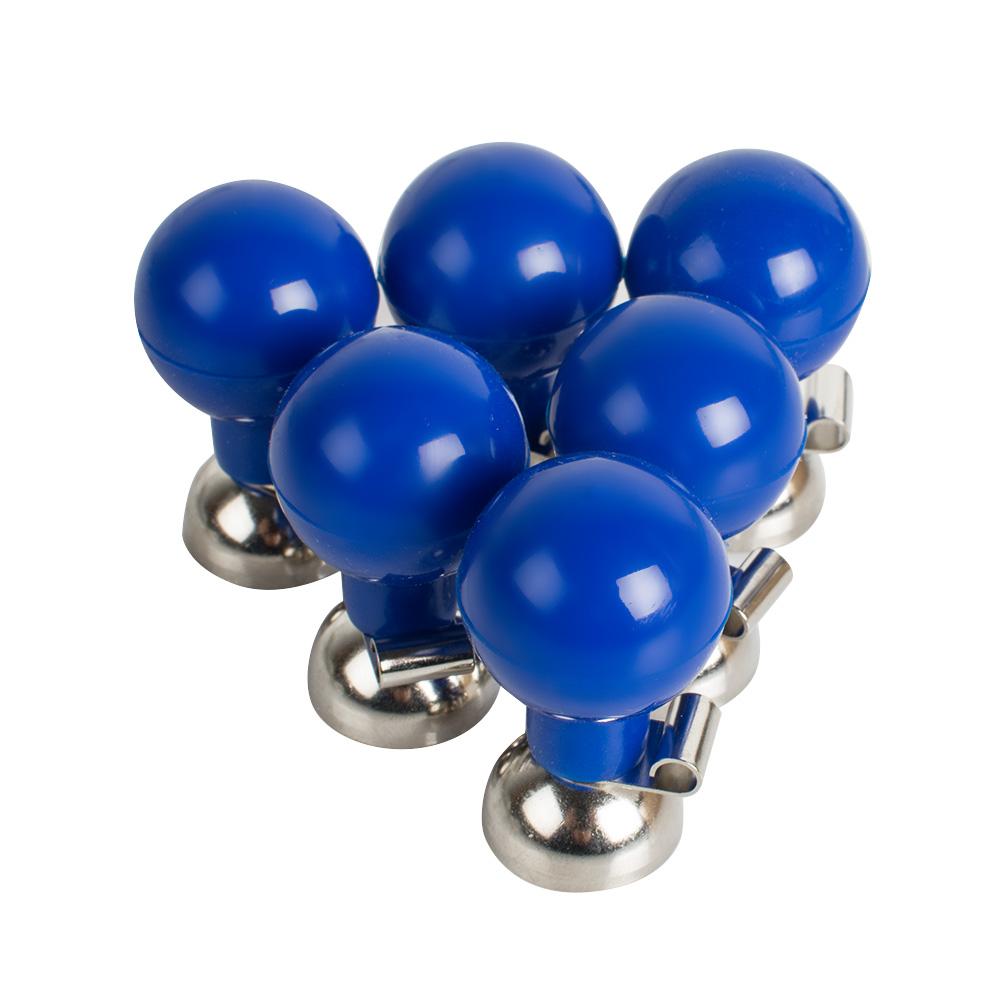

Chest Suction Ball×6
Thermal Printing Paper×1
Fuse×1
Power Cable×1
